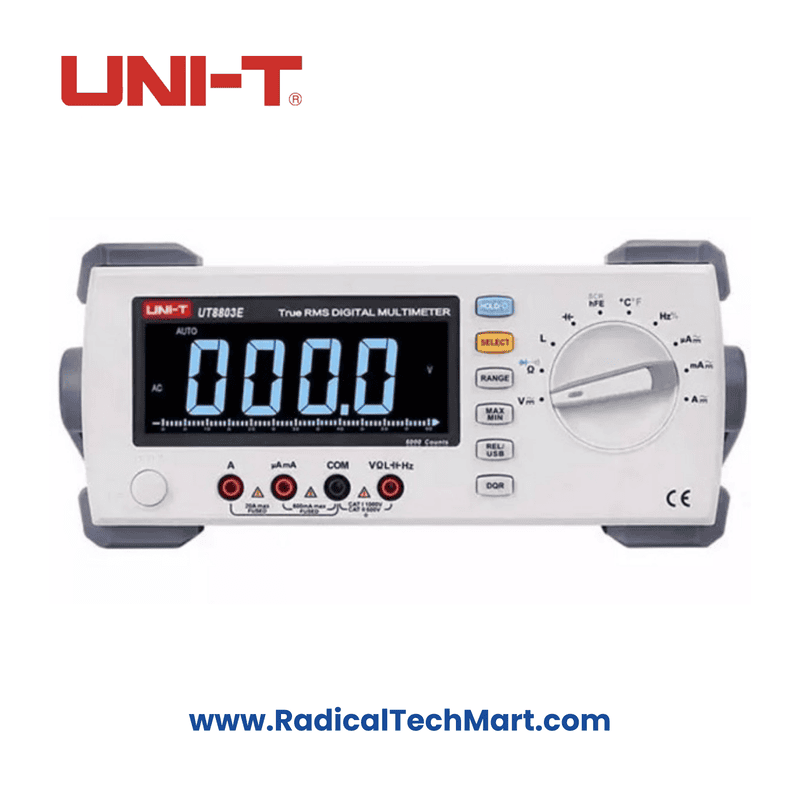

UNI-T UT8803E Benchtop Multimeter with LCRQ- True Rms

The UNI-T UT8803E is a fully-featured true-RMS 6000 counts benchtop multimeter, designed for advanced measurement capabilities. This multimeter is equipped with several key features for comprehensive testing:

• Automatic scale and True RMS readings ensure precise measurements.
• Capable of measuring diodes, transistors, and thyristors (SCR).
• Includes inductance measurement and the ability to measure the Q-factor.
• Measures frequency and temperature, with a wide range of -40°C to 1000°C.
• Supports capacitance measurement (0.001 nF to 6 mF) and resistance (0.1 Ω to 60 MΩ).
• Features DC and AC voltage measurements from 0.1 mV to 1000 V and 0.1 mV to 750 V, respectively.
• Offers DC and AC current measurement from 0.1 μA to 10A.
• The USB interface allows easy connection for data logging and real-time monitoring with included free PC software to record and plot data into graphs.
• Offers data retention and max/min tracking to store and review the highest and lowest readings.
• Includes a continuity buzzer and various extra functions such as duty cycle, hFE, and thyristor testing.
• Safety rated for CAT.II 600V applications.

The UNI-T UT8803E comes with the following accessories:

• UT-S03A socket
• Test leads
• Alligator clips
• USB interface cable
• Power cable

With a large 4.5" LCD display and 6000 counts, the multimeter provides clear readings with a refresh rate of 3 Hz. Its dimensions are 320 x 265 x 110 mm, and it weighs approximately 3100 g. The multimeter operates on AC 100-240V 50Hz power.

The product comes with a 1-year warranty, offering peace of mind with its durable performance.
